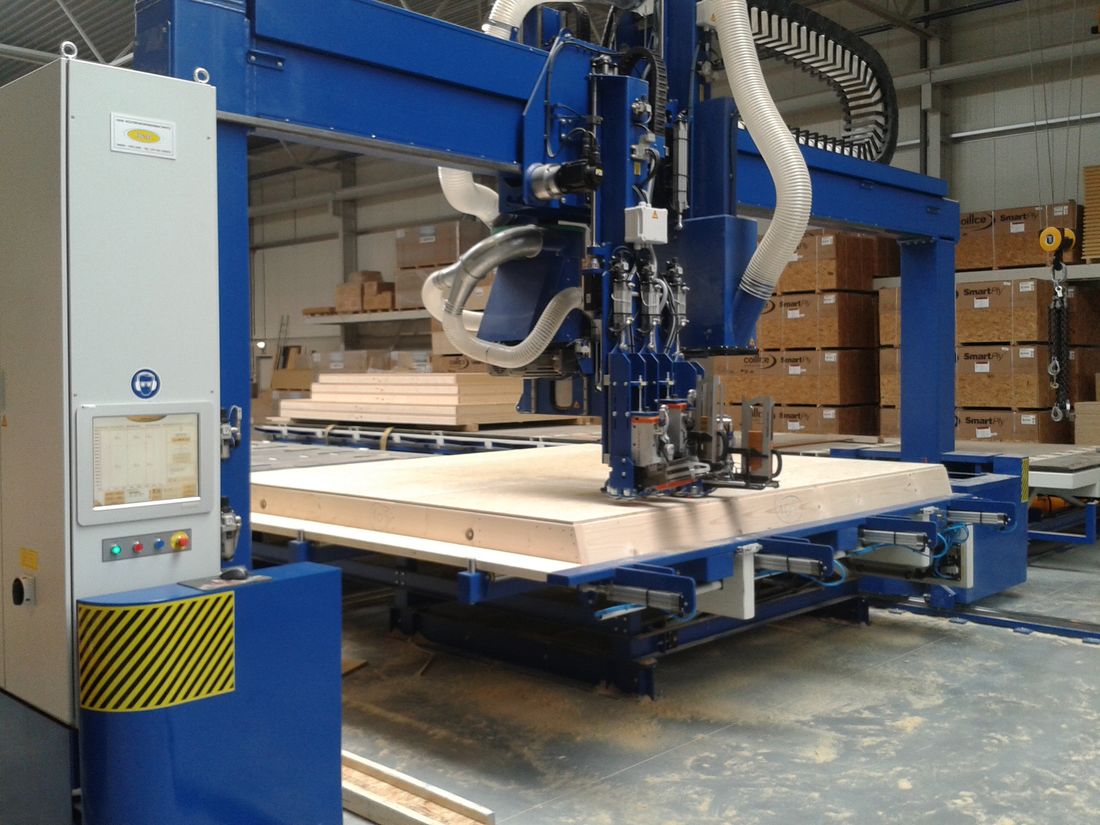

Automatic Nailing Bridge



A fully automatic nailing station for nailing or stapling sheet materials in accordance with the design specifications including the following functions:



1. Nailing or stapling of sheeting

2. Routing of openings or overhangs

3. Application of breather membrane

4. Nailing or stapling of battens



Bridges can be either mounted on a single table, or floor mounted to travel over a number of tables depending on the prduction requirement.



Options include:

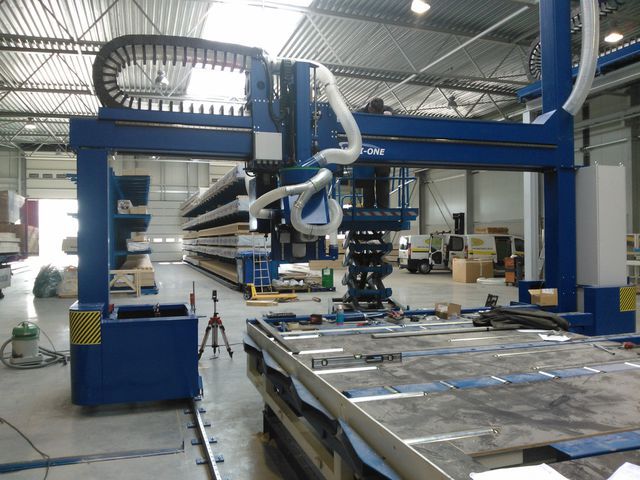

- Large capacity bridge to elements up to 500 mm thick.

- Saw for cutting of thick insulation materials.

- Drilling unit for small holes.

- Router for larger openings.



As with the whole range the nailing bridge is equipped with a full 17" touch screen with zoom and pan functions.
