Timber Frame Butterfly Table
Simple turnover device for the turning over of panels to enable the fitting of insulation or the nailing on both faces of a panel.

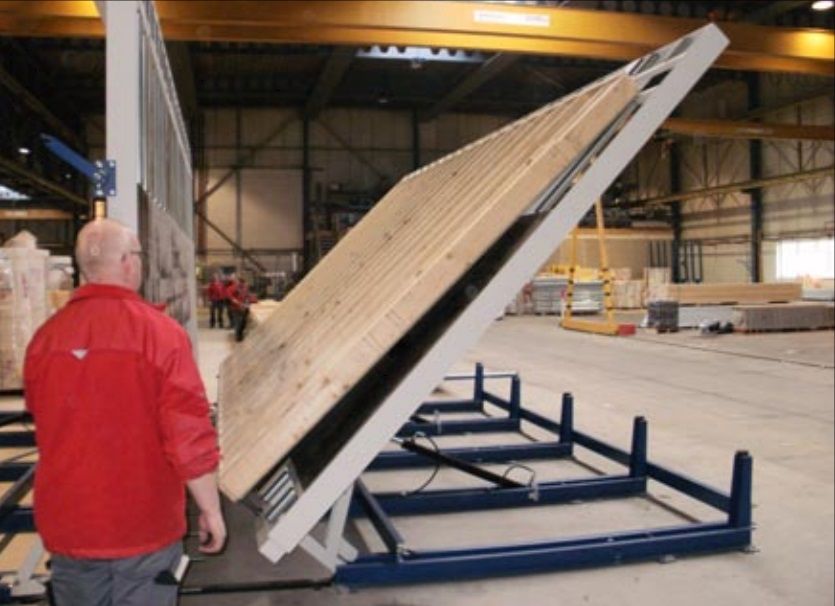

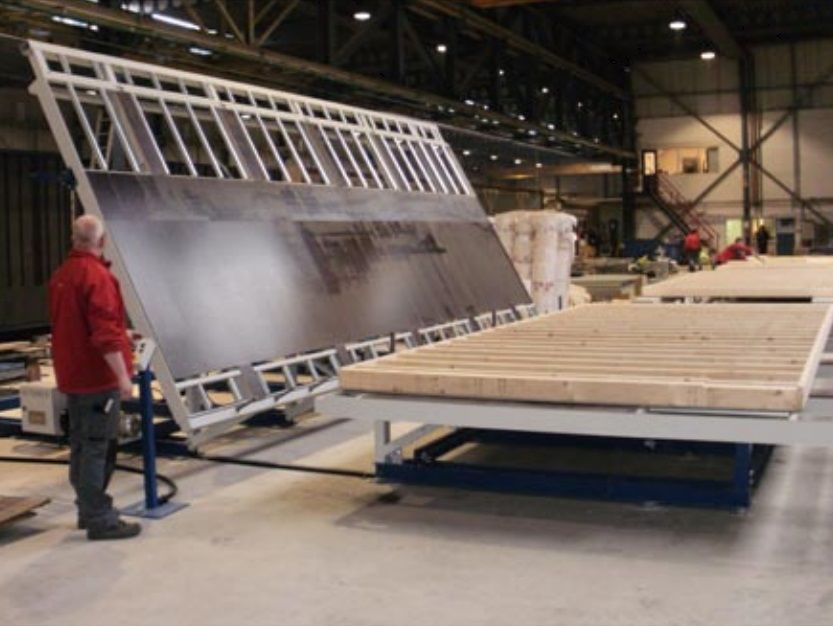

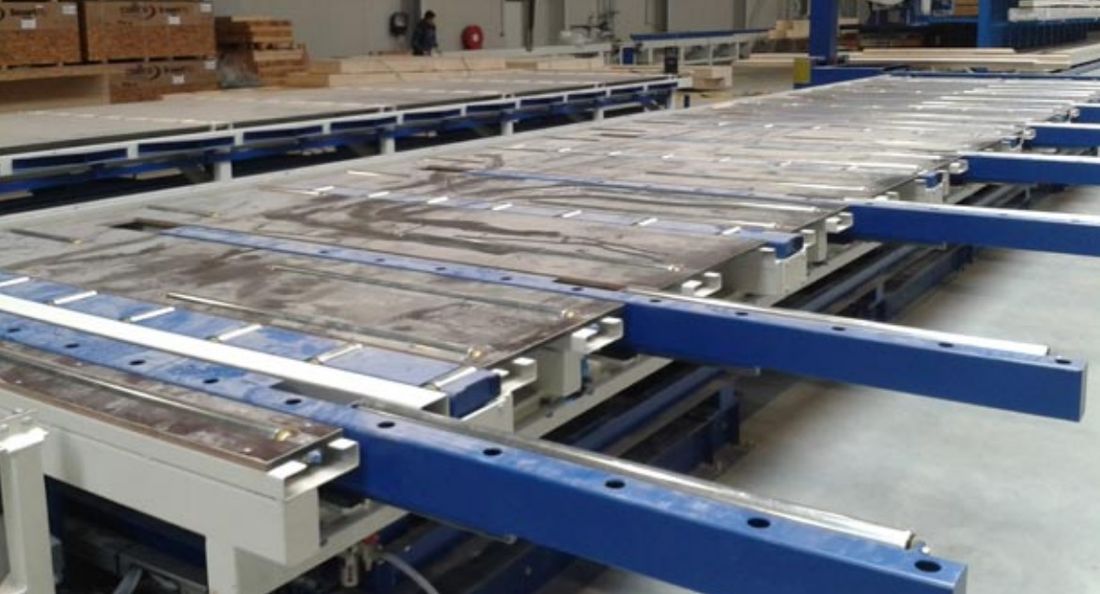

A pair of hydraullically operated tables (also known as butterfly table) that enble the panels to be brought to the vertical position, passed to the 2nd table and safely lowered back down on the opposite side for fitting of insulation and closing of the panel. There is an option to have pneumatically operated pop up idle roller tracks fitted in the table, for easy loading and unloading of panels. The hydraulic lifting of the tables is controlled by push button operation. Both tables can be up to 12 m panel length.
