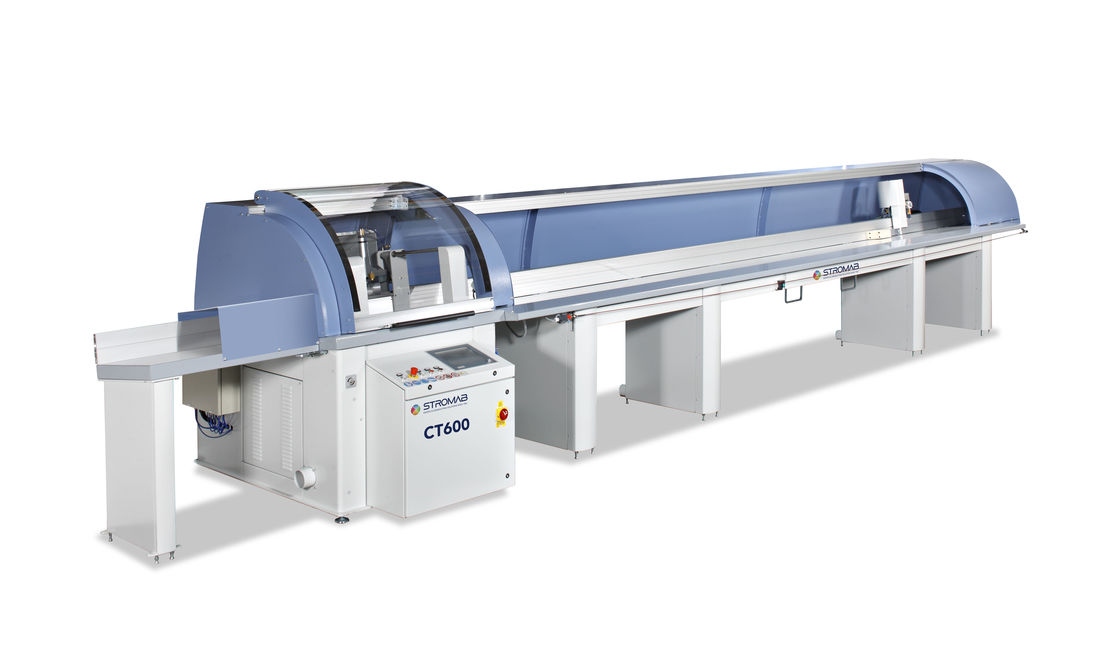

Stromab CT600 Automatic Fully Programmable Upstroke Crosscut Saw for Staright and Angled Cutting


Brochure  and Video

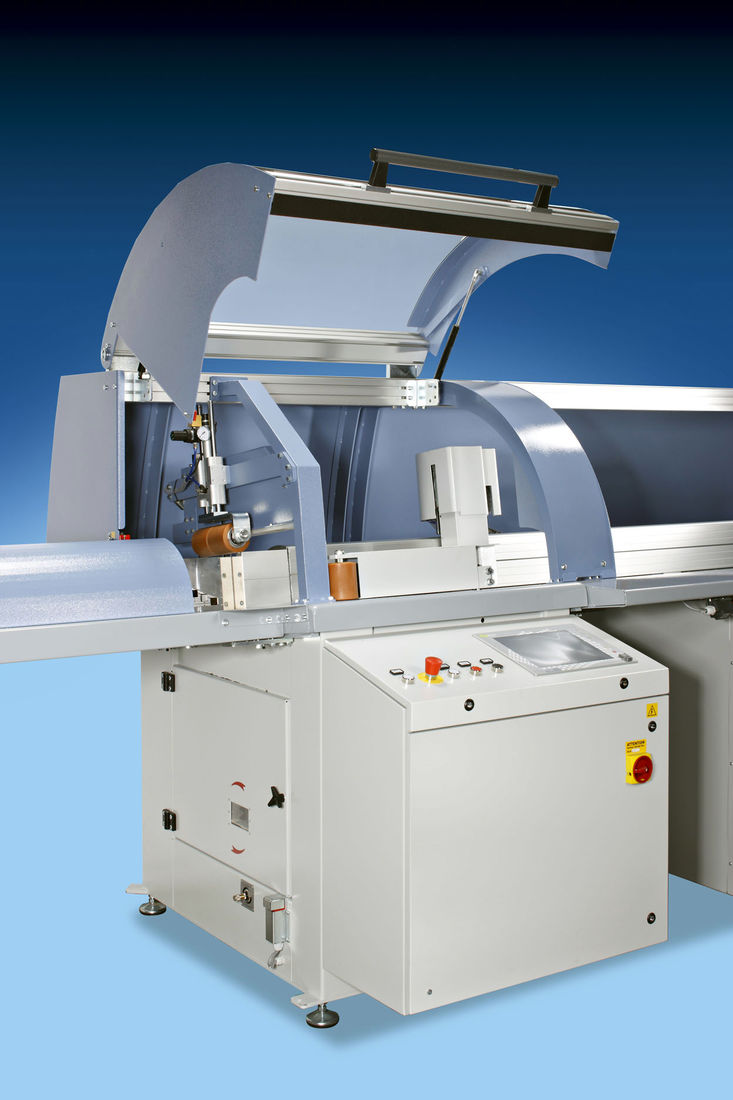

A completely automatic heavy duty programmable upstroke crosscut saw for the accurate cutting of straight and angled components. This machines is particularly suitable for the cutting of garden products, shed and general furniture components. The saw unit has a pneumatic upstroke action with variable speed control, while the sawblade angle setting with rotating table is motorised and programmable from +/- 70 degrees. The pusher / feed is fitted with a heavy duty rack and pinion drive feeding system for fast positioning giving a high level of repeat cutting accuracy. The saw unit and clamping area is totally enclosed by a clear hinged electrically interlocked hood that while giving the operatior a clear view of the cutting area still gives complete protection. The infeed and outfeed tables are of all steel construction meaning even heavy sections or packs of timber can be processed. For additional operator safety the rear of the pusher system is guarded, while there is a full length safety pull cord on the front infeed table. The CT600 is fitted with a slim-line built in industrial panel PC- a Beckhoff CP62XX with state of the art PC technology, high performance and Windows 7 operating system. Programming and entering of cutting lists / angle setting is very simple iwth the 12" graphic display with touch sscreen, with a graphic representation of the cut pieces. The standard machine offers full optimisation with a length measuring camera and (as an option) defect cutting. Remote programming is possible via the two independent Ethernet interfaces. Additional options also include extended outfeed table with ejectors, out feed monitor and label printing.



1m outfeed table

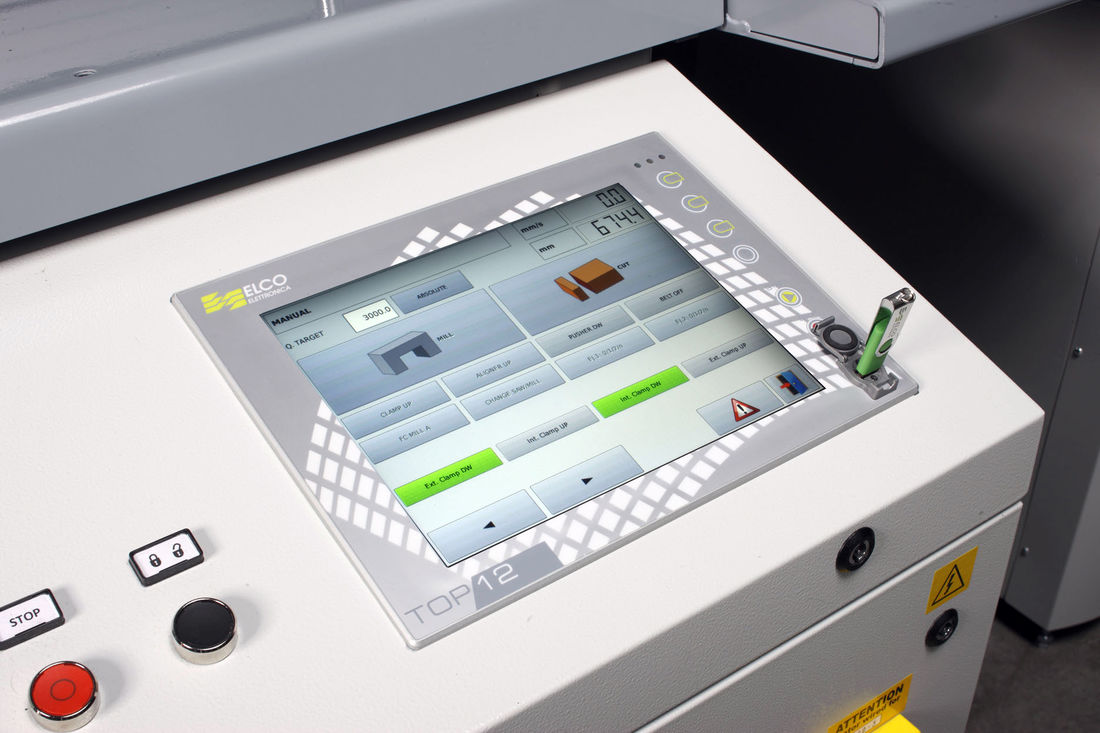

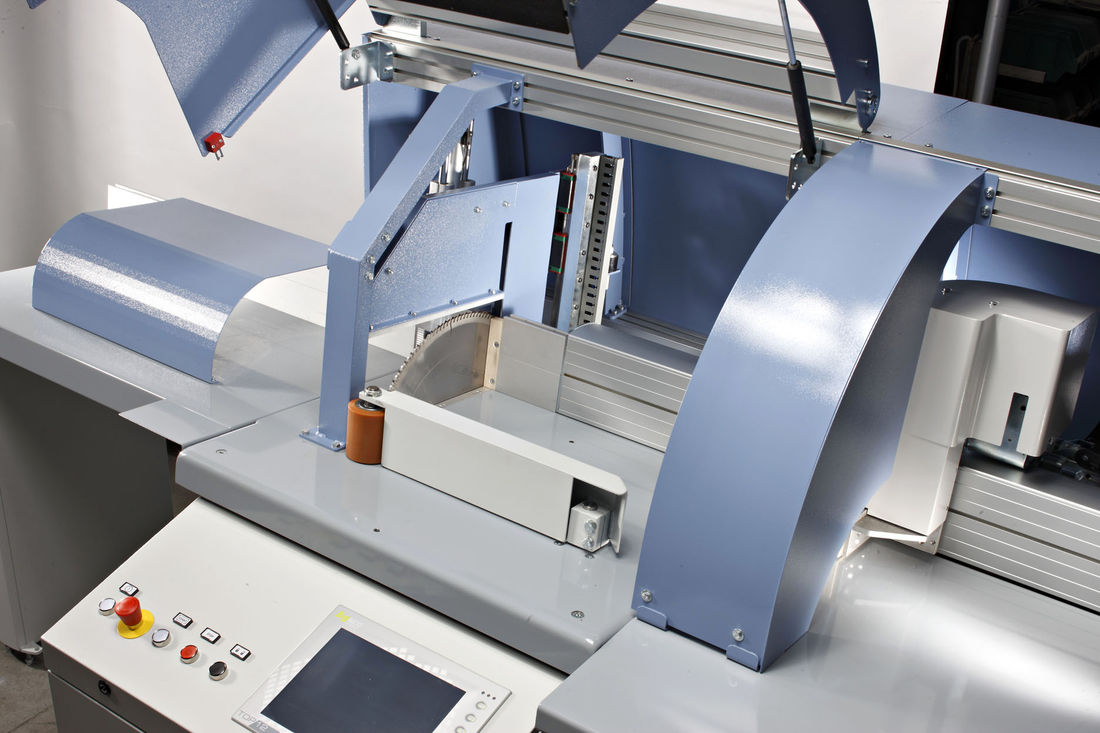

touch screen controller

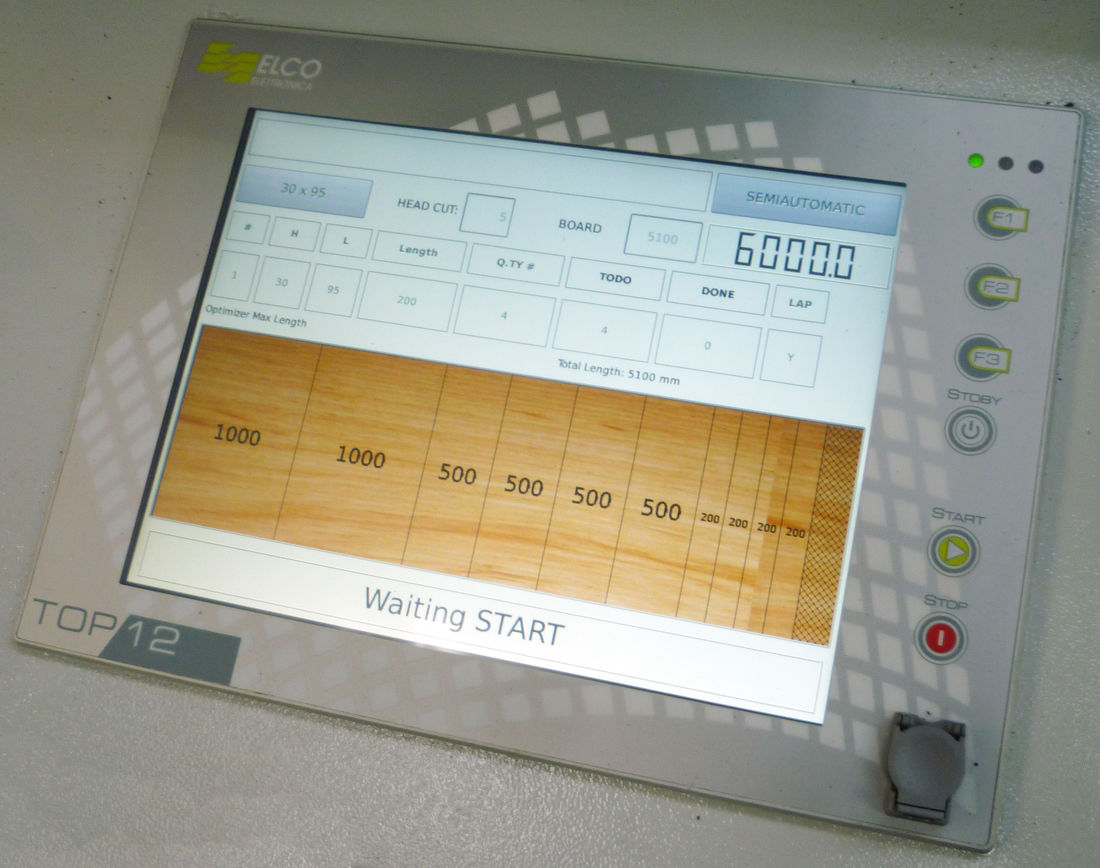

remote programming of cutting list via 12" windows based colour graphic touch screen controller

- 5 optimising criteria - longest size, minimum waste, priority size, by volume or by value

- up to 1000 list of 11 sizes or one single list of 10,000 sizes

- cutting list entered via controller key pad, USB or transfer via ethernet

- graphic description of the workpiece

10hp motor

rack & pinion drive system for pusher with magnetic reading strip to give a high level of repeat cutting accuracy

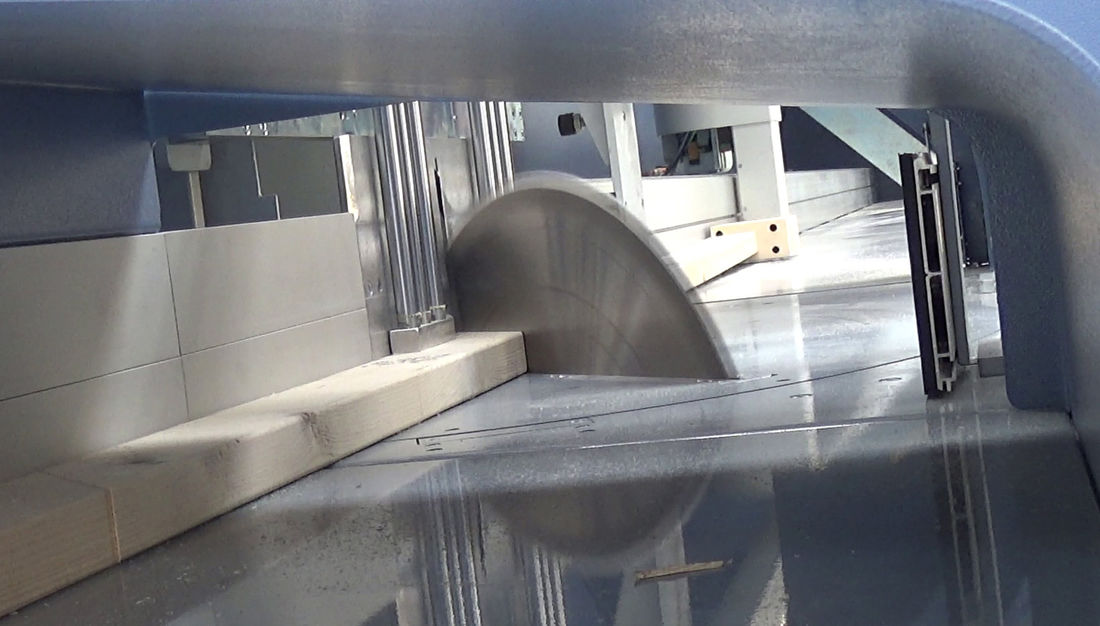

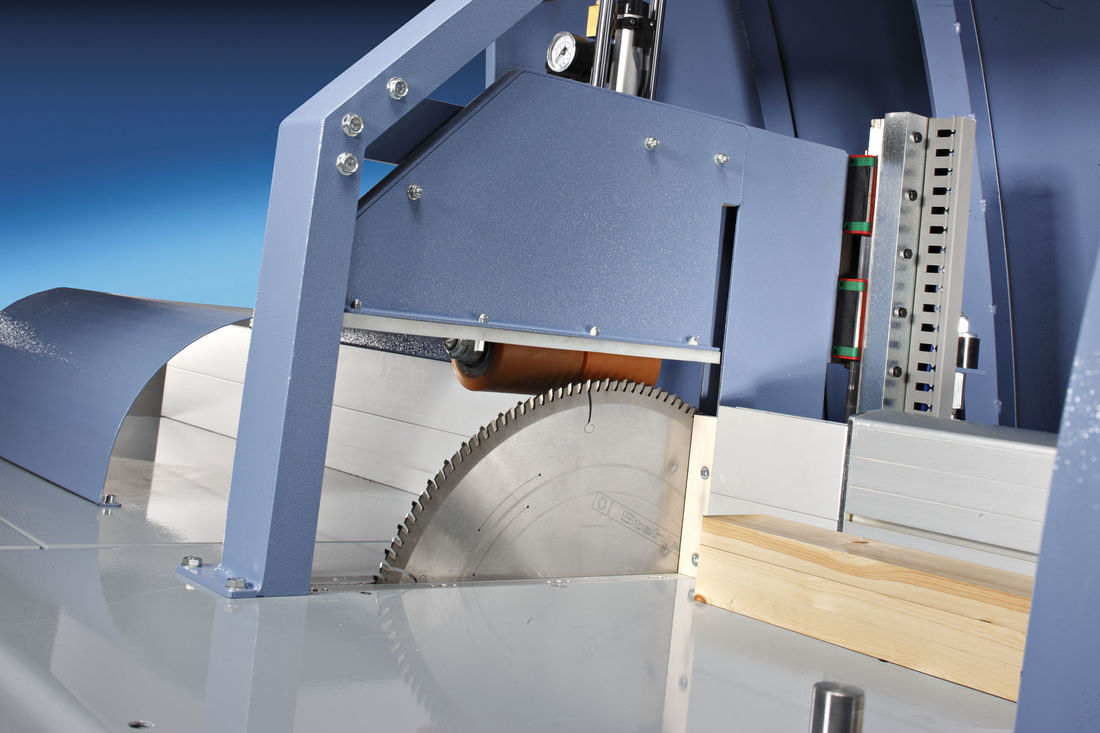

600mm diameter blade

cutting capacity - position A - max height

straight - 200mm high by 215mm wide or 50mm by 370mm

45 deg - 200mm x 180mm, 50mm x 325mm

70 deg - 200mm x 50mm, 50mm x 70mm

cutting capacity - position A - max width

straight - 160mm high by 315mm wide or 40mm by 410mm

45 deg - 160mm x 270 mm, 40mm x 350 mm

70 deg - 160 mm x 100 mm , 40mm x 70mm

angle setting - 70 degrees, 0 degrees,  + 70 degrees

adjustable saw stroke speed

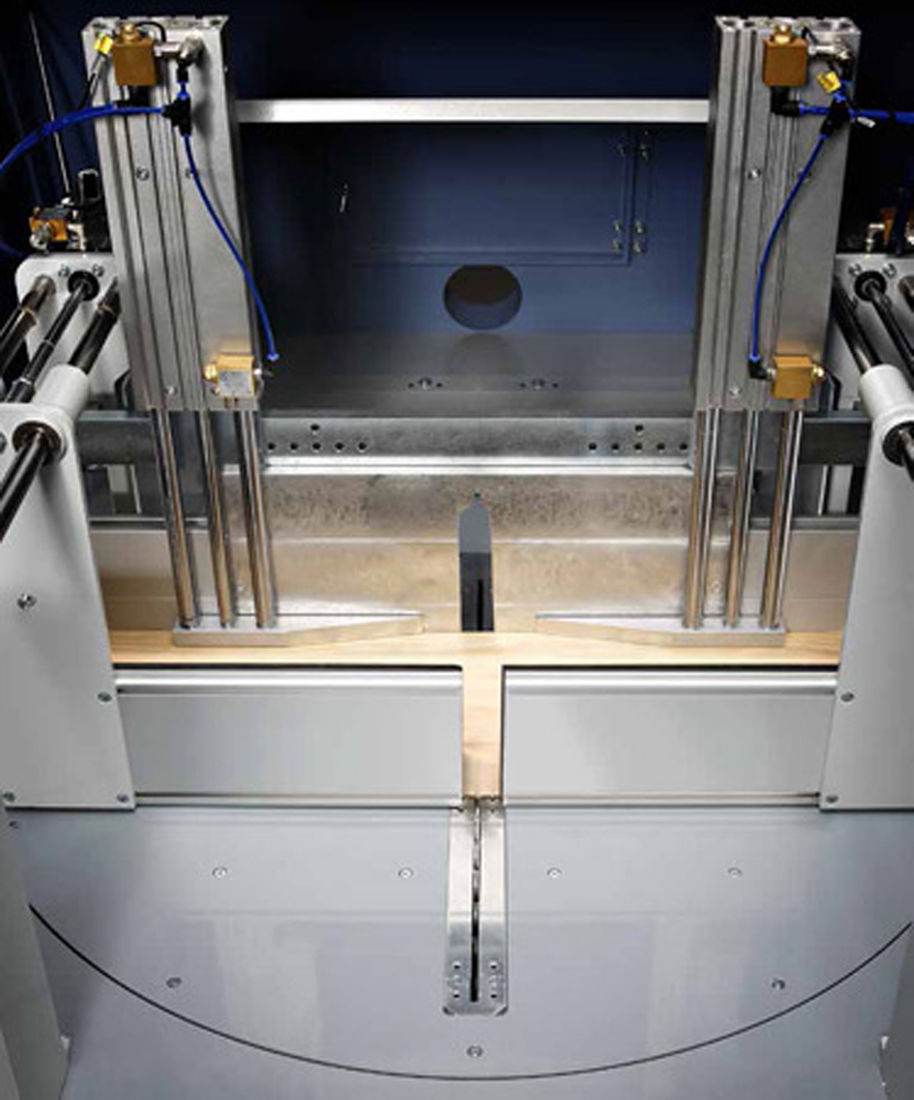

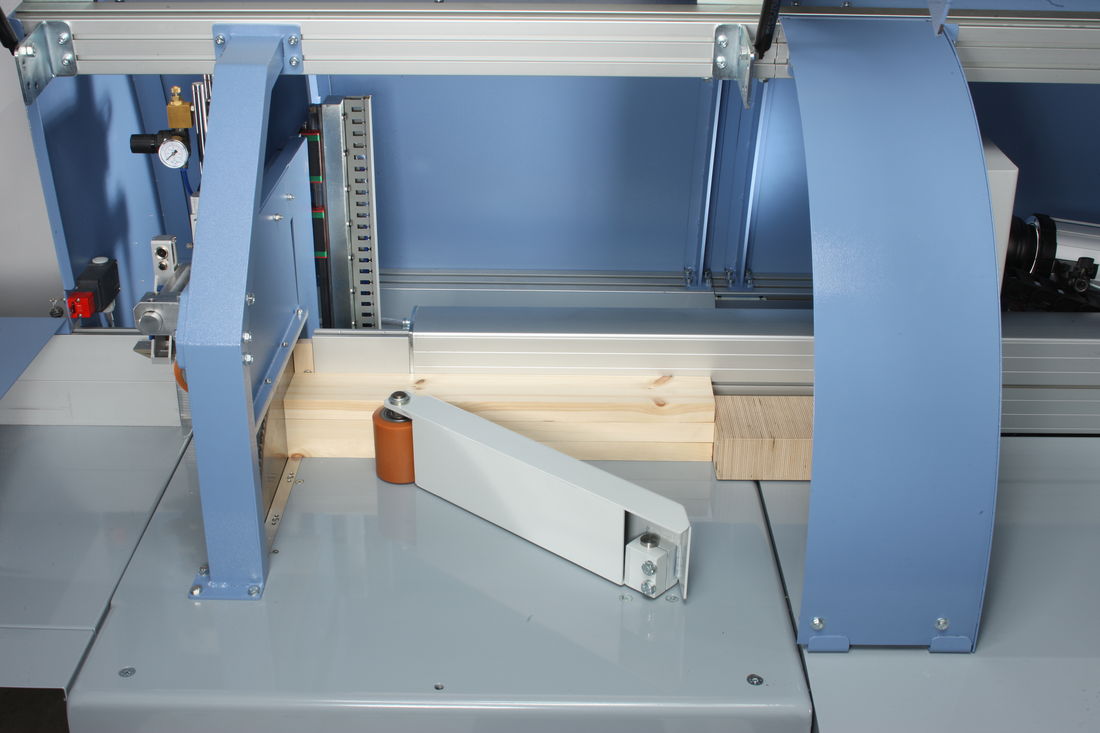

vertical clamping

horizontal clamping

dust extraction 3 off 100mm, 1 off 120mm

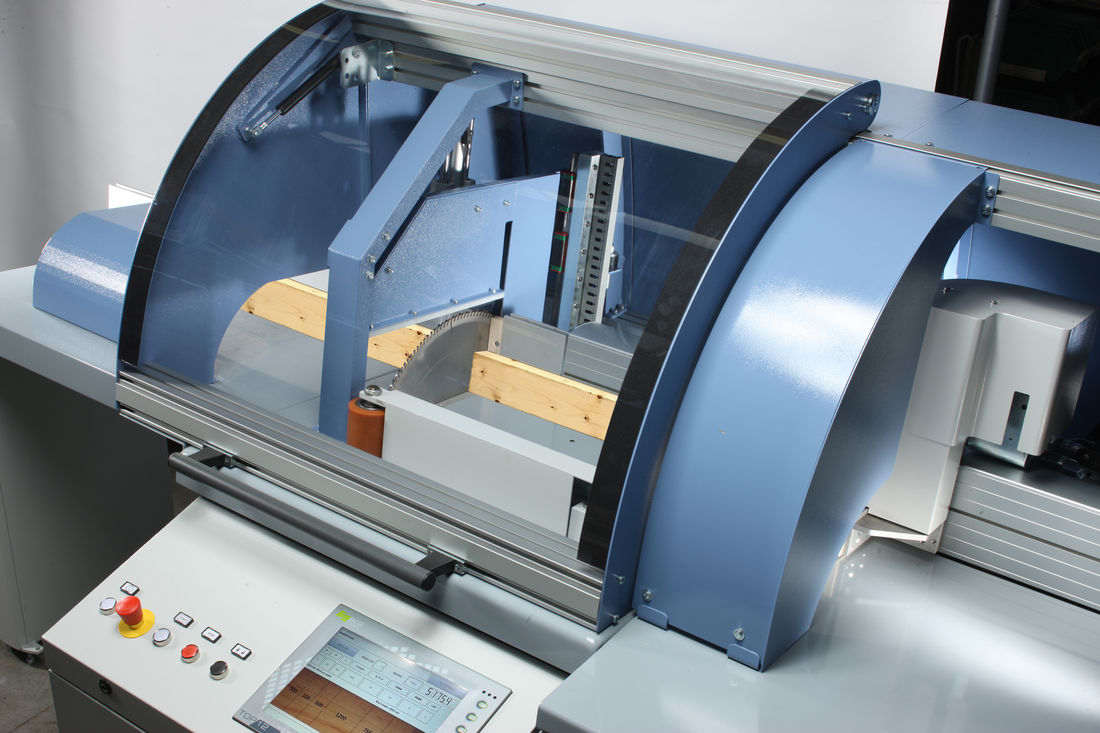

plexiglass hood with gas springs

dust extraction 3 off 100mm, 1 off 120mm

plexiglass hod with gas springs

1m outfeed table


Optional Equipment

extra meter of outfeed table

defecting camera for picking up chalk marks

extra meter beyong 7000mm

industrial PC with Windows operating system

rotation to +/- 80 degrees, including blower for waste ejection

automatic infeed 1450mm deep, for 3000mm & 4000mm infeed

automatic infeed 1450mm deep, for 6000mm infeed

automatic infeed 1450mm deep, for 7000mm infeed

label printer direct heat on thermal paper 70 x 50mm

label printer heat transfer on normal paper

label printer heat transfer on polypropylene

electronic trap door for trim and waste ejection

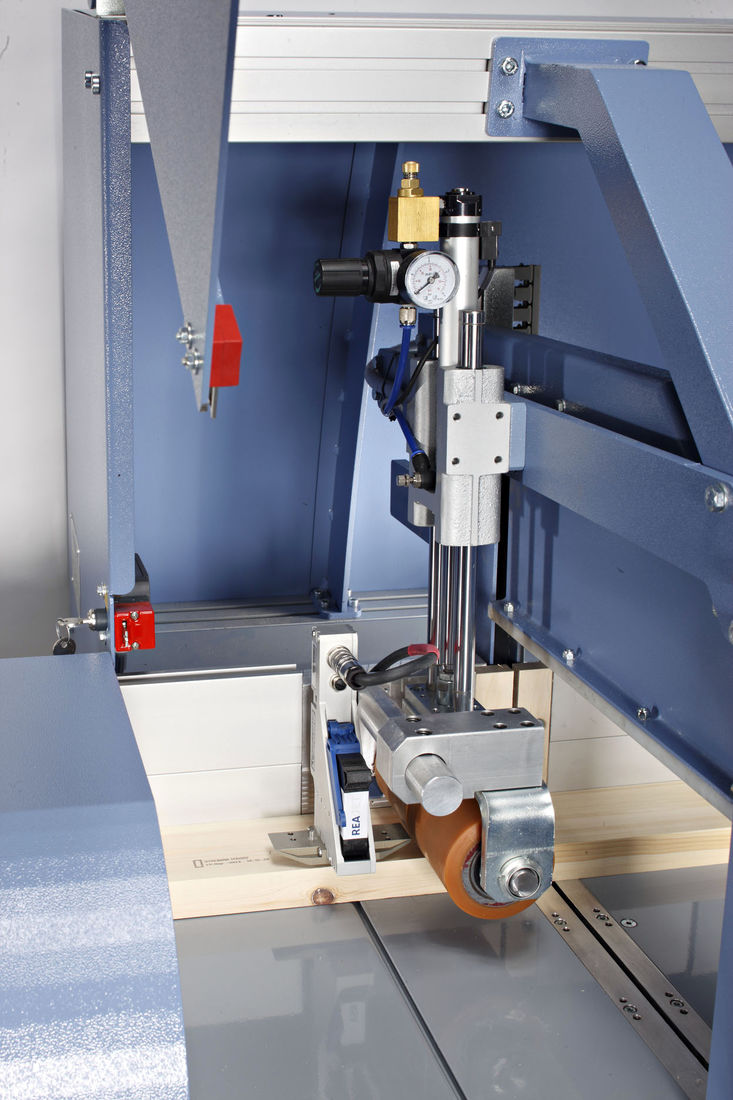

Rea ink jet printer 1 head 12.7mm - printing on the bottom face of the timber

Rea ink jet printer 2 heads 25.4mm

Rea ink jet printer 3 heads 38.1mm

Rea ink jet printer 4 heads 50.8mm

outfeed motor for displaying cut component information

Design2Wood software to import from external design software (see software price list)

2 x additional pneumatic vertical clamps (for wide stacks @ 45 degrees)

TCT saw blade 600mm

software options (on request)
